Integral LED

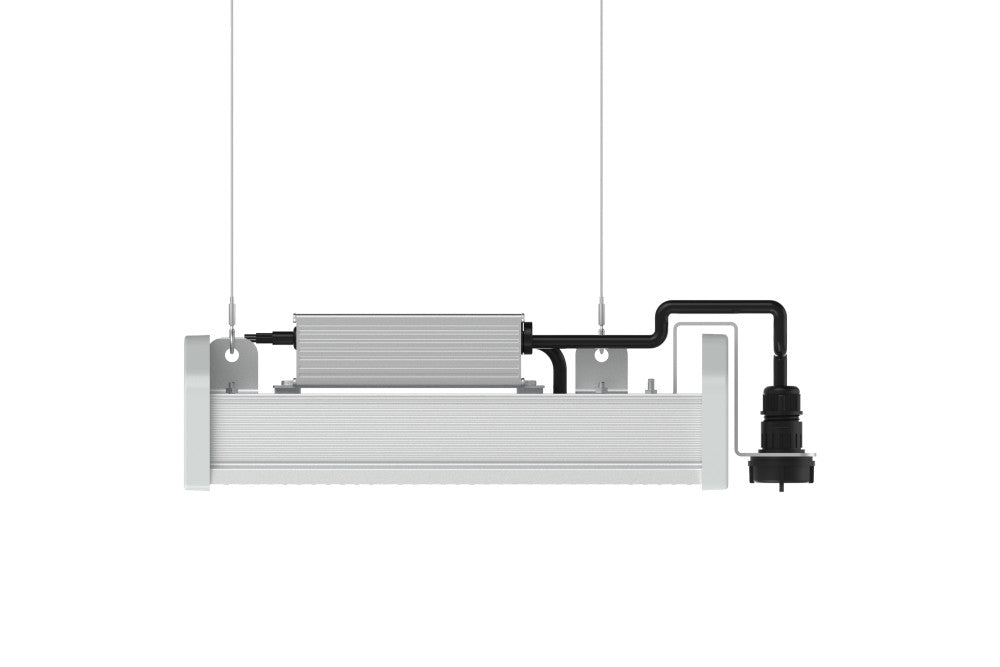

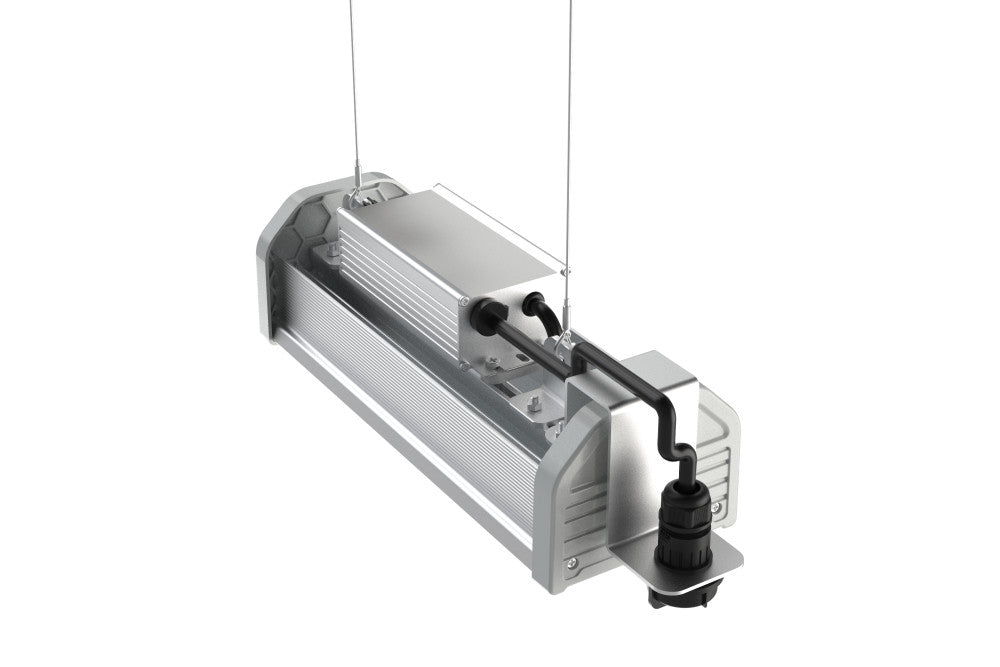

80W 0.3M VECTOR MAX LINEAR HIGH BAY IP44 IK10 14400LM 180LM/W 4000K 30x70° BEAM ZHAGA 18 PLUG-N-PLAY - ILHBL301
80W 0.3M VECTOR MAX LINEAR HIGH BAY IP44 IK10 14400LM 180LM/W 4000K 30x70° BEAM ZHAGA 18 PLUG-N-PLAY - ILHBL301
Regular price
£113.03
exc. VAT
Regular price
exc. VAT
exc. VAT
Sale price
£113.03
Unit price
/
per
£135.64 inc. VAT
Sale
Sold out
The Integral LED Vector Max Linear High Bay is built to last in the most demanding industrial environments. Compact, powerful and efficient, the Vector Max offers a high lumen output for its size at an incredibly efficient 180lm/W. IP44 ingress protection rated and IK10 shock-resistance make this rugged luminaire ideal for warehouses, production facilities, factories and other industrial environments.The 30x70° asymmetrical beam angle makes this light perfect for long and narrow spaces like in between warehouse racking.The Vector Max features a Zhaga 18 socket for plug and play control and sensor add ons, including Casambi, PIR and microwave. Surface mounting brackets sold separately. See related products for accessory options.
- Product Feature 1:
- 14400lm
- Product Feature 2:
- Zhaga 18 plug n play
- Product Feature 3:
- 4000K
- Product Feature 4:
- 180lm/W
- Product Feature 5:
- Class I
- Product Feature 6:
- 5 Year Warranty
- Product Feature 7:
- IP44
- Product Feature 8:
- IK10
Share
Details
Details
- Barcode: 5055788284741
- Category: Luminaires
- Range Name: Vector Max
- Type: Linear
- Product Type: Linear High Bay
- Product Body Finish: Silver
- Market Segment: Commercial indoor, Industrial indoor
- Finish: Silver
- Features: 180lm/W
- Warranty (Years): 5
Physical Data
Physical Data
- Emergency Option: No
- Size (in ft): 1ft
- Product Length (mm): 317
- Product Depth (mm): 96
- Product Width (mm): 112
- Product Weight (g): 2100
- Optic: Polycarbonate diffuser
- Material: Aluminium
- Construction: Aluminium
- Bulb or Luminaire Shape: Linear
- Luminaire Fixing: Suspended / ceiling mounted / wall mounted
- Placement / Application: Indoor, General Lighting
- Typical Mounting Height: 5M
Light Data
Light Data
- Luminous Flux in Lumens (lm): 14400
- Luminous efficacy (lm/W): 180
- Correlated Colour Temperature (CCT) (K): 4000
- Colour Temperature Name: Cool White
- Beam Angle: 30x70
- Colour Rendering Index (CRI): 80
- Frequency Range (Hz): 47/63 Hz
- Instant on (Less than 1 second): Yes
- LED Size (mm): 2835
- LED Type: Surface mounted device (SMD)
- Lifetime (hours): 50000
- Switching Cycles: 100000
Electrical Data
Electrical Data
- Power Factor: 0.95
- Voltage Range (v): 200-240
- Input Voltage (V): 200-240
- Dimming: Dimmable
- Driver Included: Yes
- Electric Current: AC
- Protection Function: Short Circuit, overload and overheating protection on driver
- EN: EN-60598
- LVD Certified: Yes
Environmental
Environmental
- EN: EN-60598
- LVD Certified: Yes
- CE RoHS: Yes
- EU Luminaire: L
- Hg 0% (Mercury Free): Yes
- IK Rating (Impact Protection): IK10
- IP Rating (Ingress Protection): IP44
- Lowest Operating Temperature (°C): -35
- Maximum Operating Temperature (°C): 50
