Integral LED

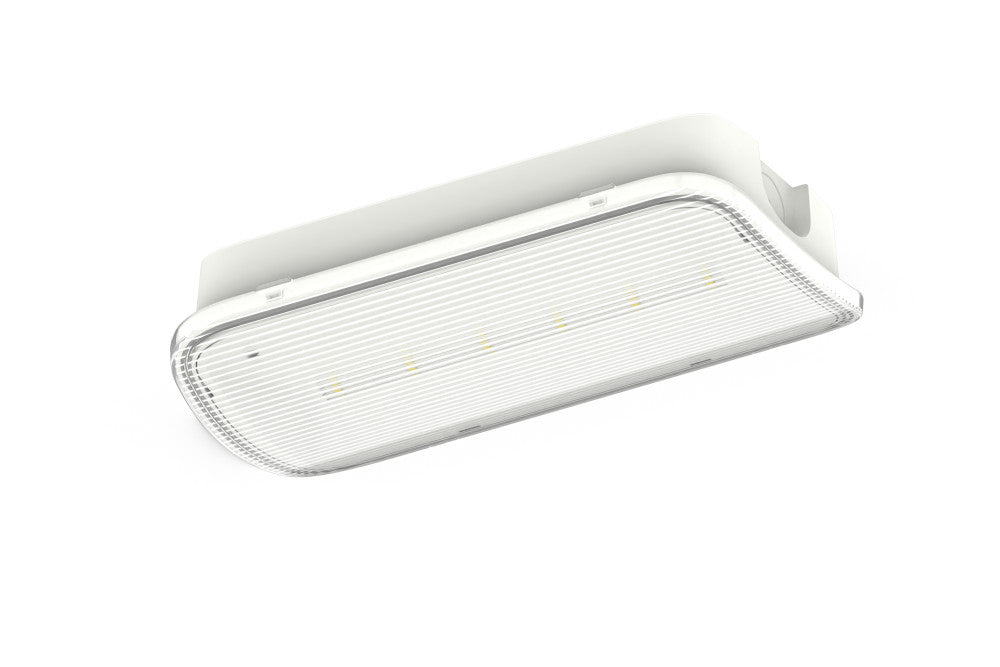

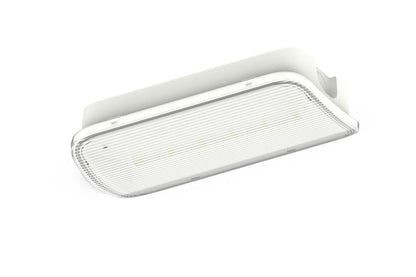

EMERGENCY COMPACT BULKHEAD IP65 1W 150LM 3HR MAINTAINED OR NON-MAINTAINED 6000K SELF TEST INCLUDING UP DOWN LEFT RIGHT LEGENDS INTEGRAL LED - ILEMBH033

EMERGENCY COMPACT BULKHEAD IP65 1W 150LM 3HR MAINTAINED OR NON-MAINTAINED 6000K SELF TEST INCLUDING UP DOWN LEFT RIGHT LEGENDS INTEGRAL LED - ILEMBH033

£14.42 exc. VAT
exc. VAT
exc. VAT
 £14.42

£17.30 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Product Feature 1:
3 Hour Emergency Illumination
Product Feature 2:
Hardwearing and weatherproof
Product Feature 3:
Self Test
Product Feature 4:
Push-fit connector for easy installation
Product Feature 5:
Supplied with self-adhesive Legend Set
Product Feature 6:
3 year warranty
  • Application: Both Included
  • Quick Order Code: 738111
  • Barcode: 5055788288718
  • Category: Emergency
  • Range Name: Emergency Bulkhead
  • Product Type: Emergency Bulkhead
  • Product Body Finish: Matt white
  • Market Segment: Indoor and Outdoor Commercial, Industrial, Residential
  • Finish: Matt White
  • Warranty (Years): 3
  • Emergency Option: Integrated
  • Emergency Category: Bulkheads
  • Product Length (mm): 231
  • Product Depth (mm): 49
  • Product Width (mm): 116
  • Product Weight (g): 279
  • Optic: Polycarbonate diffuser
  • Material: Polycarbonate
  • Construction: Plastic
  • Bulb or Luminaire Shape: Rectangle
  • Luminaire Fixing: Ceiling, Wall
  • Placement / Application: Indoor, Outdoor, General Lighting
  • Luminous Flux in Lumens (lm): 150
  • Correlated Colour Temperature (CCT) (K): 6000
  • Colour Temperature: 6000K - Cool Daylight
  • Colour Temperature Name: Daylight
  • Beam Angle: 120
  • Colour Rendering Index (CRI): 70
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Size (mm): 2835
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 50000
  • Lumens in Emergency mode (lm): 150
  • Switching Cycles: 15000
  • Useful Lumens (lm): 150
  • Power Consumption (W): 1
  • Power Factor: 0.5
  • Voltage Range (v): 220-240
  • Amperage (mA): 375
  • Input Voltage (V): 220-240
  • Battery Configuration: LiFePo4
  • Dimming: Non-Dimmable
  • Driver Included: Yes
  • Electric Current: AC
  • Emergency Battery Life (years): 3
  • Emergency Lumens (lm): 150
  • Emergency Type: Non-Maintained
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • EU Luminaire: L
  • Hg 0% (Mercury Free): Yes
  • IK Rating (Impact Protection): IK07
  • IP Rating (Ingress Protection): IP65
  • Lowest Operating Temperature (°C): 5
  • Maximum Operating Temperature (°C): 40
