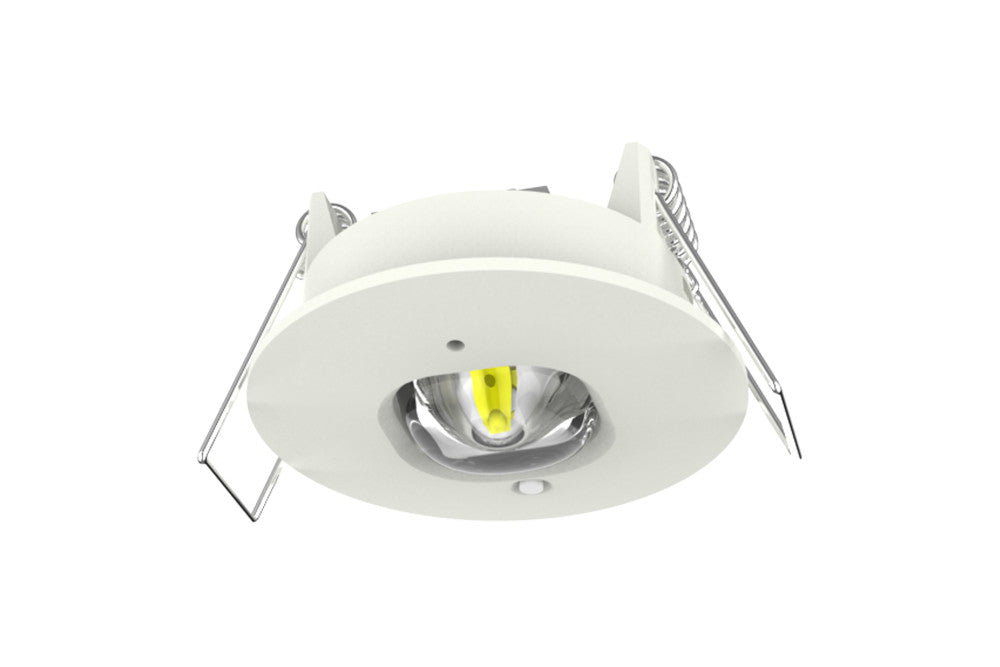

EMERGENCY COMPACT DOWNLIGHT 1W 120LM 3HR NON-MAINTAINED 38MM CUTOUT 5700K OPEN AREA MANUAL TEST INTEGRAL LED - ILEMDL072
EMERGENCY COMPACT DOWNLIGHT 1W 120LM 3HR NON-MAINTAINED 38MM CUTOUT 5700K OPEN AREA MANUAL TEST INTEGRAL LED - ILEMDL072
Regular price
£16.36
exc. VAT
Regular price
exc. VAT
exc. VAT
Sale price
£16.36
Unit price
/
per
£19.63 inc. VAT
Sale
Sold out
- Product Feature 1:
- 120 Lumens in emergency mode
- Product Feature 2:
- Cool White
- Product Feature 3:
- 38mm cut-out
- Product Feature 4:
- 3 Year warranty
Share
Details
Details
- Application: Open Area
- Quick Order Code: 766475
- Barcode: 5055788288756
- Category: Emergency
- Range Name: Compact
- Product Type: Emergency Downlights
- Product Body Finish: Matt white
- Market Segment: Commercial indoor
- Finish: Matt White
- Warranty (Years): 3
Physical Data
Physical Data
- Emergency Category: Downlights
- Linkable: No
- Product Depth (mm): 23
- Product Weight (g): 149
- Diameter (mm): 42
- Optic: Polycarbonate diffuser
- Material: Polycarbonate
- Construction: Injection moulding
- Cut Out Diameter (mm): 38
- Bulb or Luminaire Shape: Round
- Luminaire Fixing: Recessed
- Mounting Type: Rear Cable Entry
- Placement / Application: Indoor, Emergency Lighting
Light Data
Light Data
- Luminous Flux in Lumens (lm): 120
- Correlated Colour Temperature (CCT) (K): 4000
- Colour Temperature: 4000K - Cool White
- Colour Temperature Name: Cool White
- Colour Rendering Index (CRI): 70
- Frequency Range (Hz): 50/60
- Instant on (Less than 1 second): Yes
- LED Size (mm): 5050
- LED Type: Surface mounted device (SMD)
- Lifetime (hours): 50000
- Lumens in Emergency mode (lm): 120
- Switching Cycles: 15000
- Useful Lumens (lm): 120
Electrical Data
Electrical Data
- Power Consumption (W): 1
- Power Factor: 0.5
- Voltage Range (v): 220-240
- Amperage (mA): 350
- Input Voltage (V): 220-240
- Battery Configuration: LiFePo4
- Dimming: Non-Dimmable
- Driver Included: Yes
- Electric Current: AC
- Emergency Battery Life (years): 3
- Emergency Lumens (lm): 120
- Emergency Type: Non-Maintained
- EN: EN-60598
- LVD Certified: Yes
Environmental
Environmental
- EN: EN-60598
- LVD Certified: Yes
- CE RoHS: Yes
- EU Luminaire: L
- Hg 0% (Mercury Free): Yes
- IK Rating (Impact Protection): IK04
- IP Rating (Ingress Protection): IP20
- Lowest Operating Temperature (°C): 5
- Maximum Operating Temperature (°C): 45
