Integral LED

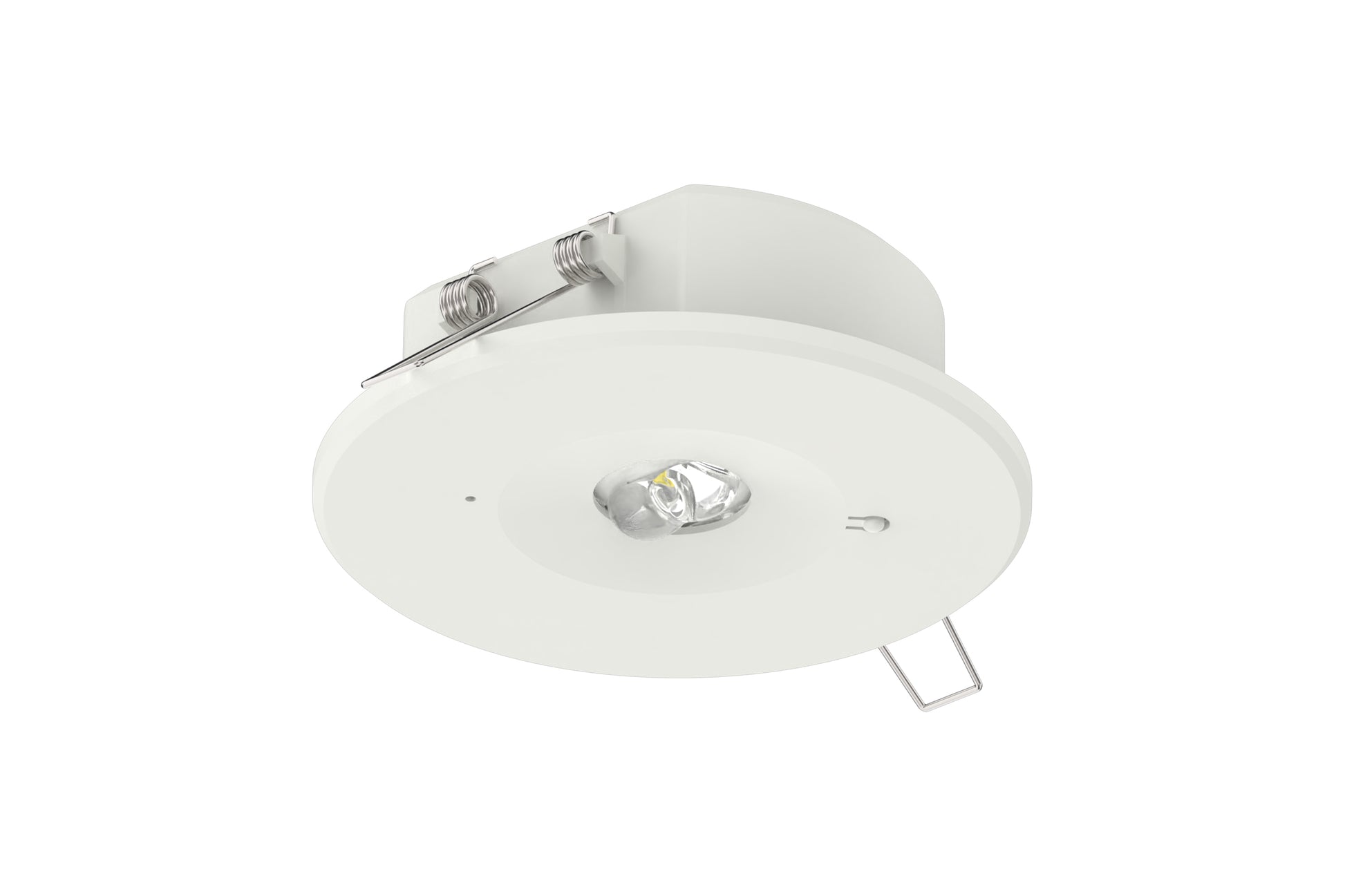

EMERGENCY DOWNLIGHT 1W 150LM 3HR NON MAINTAINED 75MM CUT OUT OPEN AREA AND CORRIDOR IP20 6000K SELF TEST INTEGRAL LED - ILEMDL070

EMERGENCY DOWNLIGHT 1W 150LM 3HR NON MAINTAINED 75MM CUT OUT OPEN AREA AND CORRIDOR IP20 6000K SELF TEST INTEGRAL LED - ILEMDL070

£17.94 exc. VAT
exc. VAT
exc. VAT
 £17.94

£21.53 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Product Feature 1:
1W LED
Product Feature 2:
150Lm
Product Feature 3:
6000K
Product Feature 4:
3 Year warranty
  • Application: Corridor & Open Area
  • Quick Order Code: 541414
  • Barcode: 5055788288732
  • Category: Emergency
  • Range Name: Recessed
  • Product Type: Emergency Downlights
  • Product Body Finish: Matt white
  • Market Segment: Commercial indoor
  • Finish: Matt White
  • Features: Emergency Function
  • Warranty (Years): 3
  • Emergency Option: No
  • Emergency Category: Downlights
  • Linkable: No
  • Product Length (mm): 98
  • Product Depth (mm): 34.5
  • Product Width (mm): 98
  • Product Weight (g): 116
  • Diameter (mm): 98
  • Optic: Polycarbonate
  • Material: Polycarbonate
  • Construction: Injection moulding
  • Cut Out Diameter (mm): 75
  • Bulb or Luminaire Shape: Round
  • Luminaire Fixing: Ceiling
  • Mounting Type: Rear Cable Entry
  • Placement / Application: Indoor, Emergency Lighting
  • Luminous Flux in Lumens (lm): 150
  • Correlated Colour Temperature (CCT) (K): 6000
  • Colour Temperature: 6000K - Cool Daylight
  • Colour Temperature Name: Daylight
  • Colour Rendering Index (CRI): 70
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Size (mm): 5050
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 50000
  • Lumens in Emergency mode (lm): 150
  • Switching Cycles: 15000
  • Useful Lumens (lm): 150
  • Power Consumption (W): 1
  • Power Factor: 0.5
  • Voltage Range (v): 220-240
  • Amperage (mA): 370
  • Input Voltage (V): 220-240
  • Battery Configuration: LiFePo4
  • Dimming: Non-Dimmable
  • Driver Included: Yes
  • Electric Current: AC
  • Emergency Battery Life (years): 3
  • Emergency Lumens (lm): 150
  • Emergency Type: Non-Maintained
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • EU Luminaire: L
  • Hg 0% (Mercury Free): Yes
  • IK Rating (Impact Protection): IK04
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): 5
  • Maximum Operating Temperature (°C): 45
View full details
